Choosing the Right Industrial Strainer A Clear Comparison of Simplex, Duplex, Y, and Basket Types

Choosing the Right Industrial Strainer A Clear Comparison of Simplex, Duplex, Y, and Basket Types

In any industrial fluid system, the silent threat of contamination is ever-present. Debris like rust, scale, weld metal, and sediment can wreak havoc on downstream equipment, causing damage to pumps, clogging meters, and fouling heat exchangers. The solution? An industrial strainer.



These essential components are the first line of defence, but not all strainers are created equal. Choosing the wrong type can lead to inefficient filtration, excessive downtime, or unnecessary costs.


At Perfect Engineering Services, we believe an informed choice is the best choice. This guide will demystify the four most common types of industrial strainers—Y-type, Simplex Basket, and Duplex Basket—to help you select the perfect fit for your application.As trusted Y Strainer Manufacturers in Dubai and reputed Strainer Suppliers in UAE, we provide reliable and durable filtration solutions tailored to diverse industries.

What is an Industrial Strainer?

At its core, a strainer is a device that removes and retains solid particles from a fluid stream using a perforated or wire mesh screen. Its primary job is to protect valuable downstream equipment, ensuring system longevity and operational reliability.



Let’s break down the main contenders.

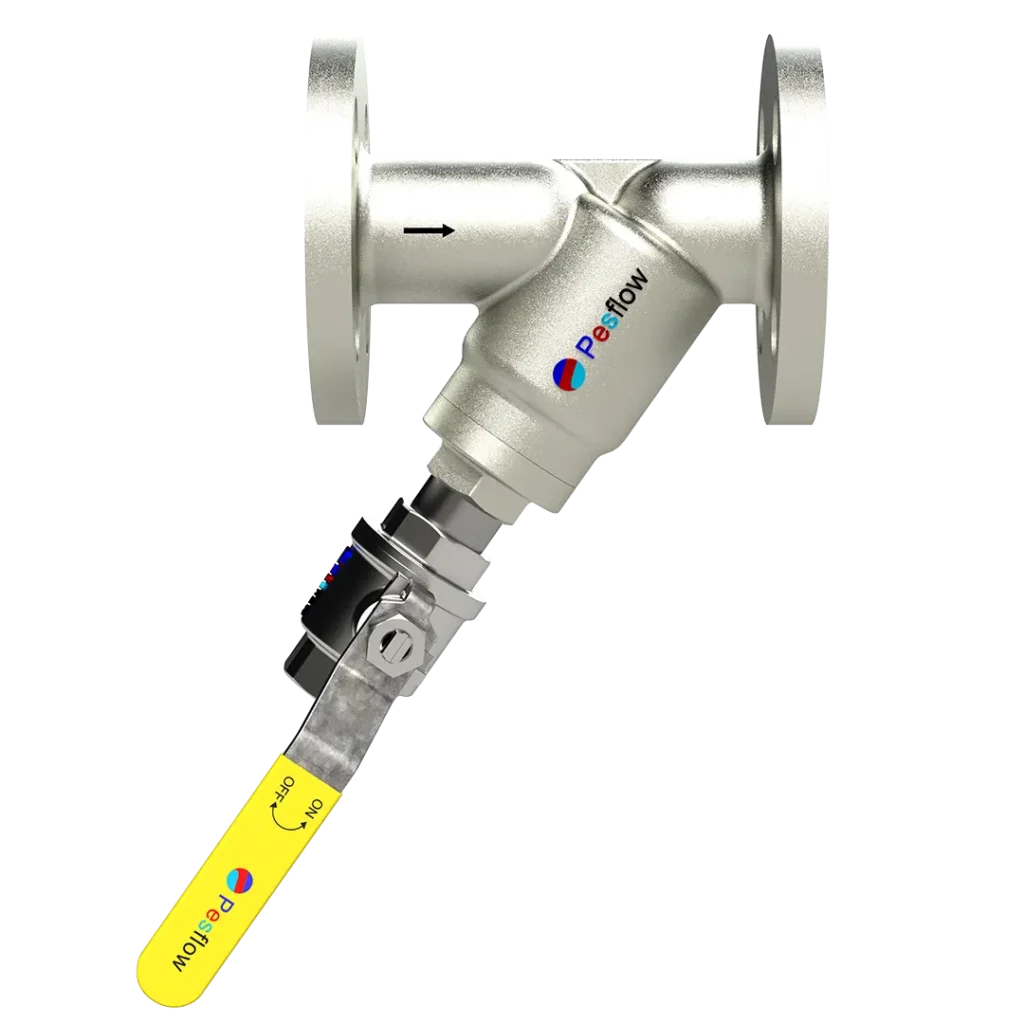

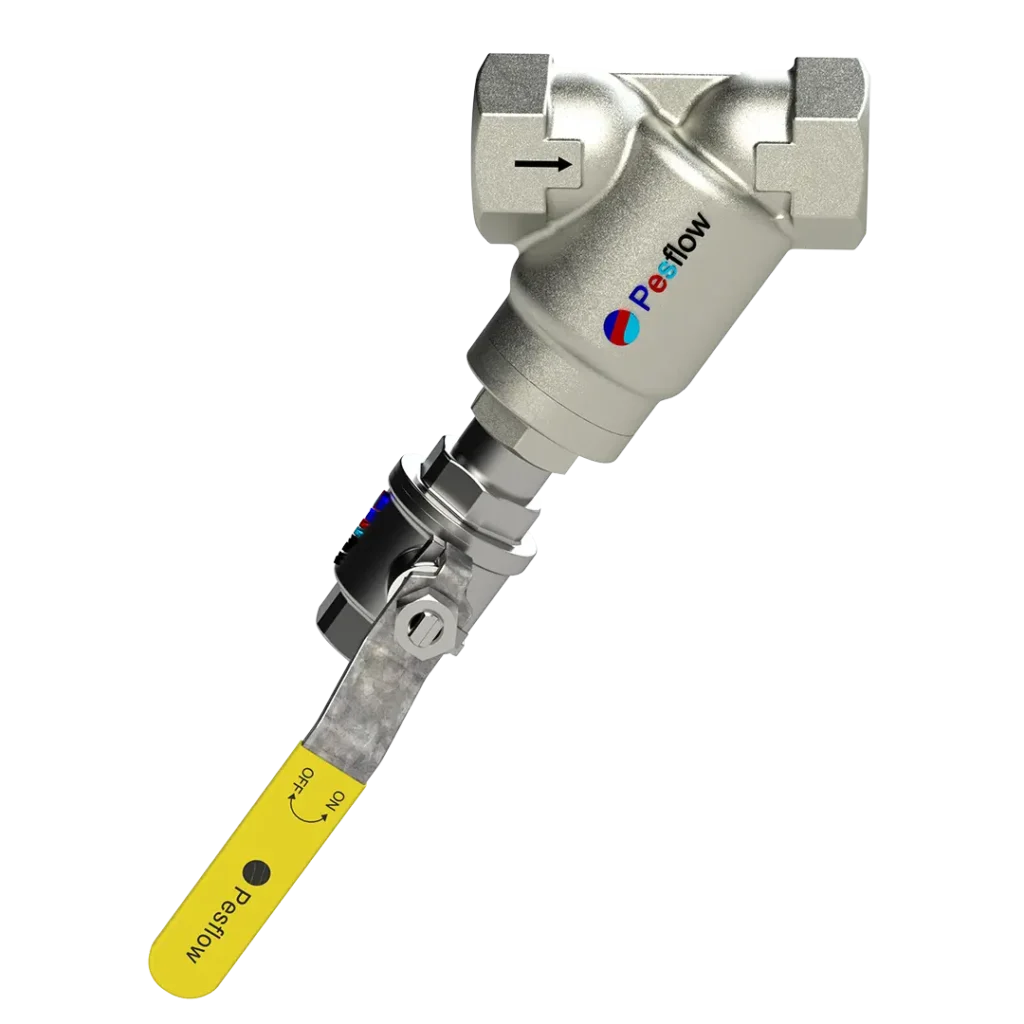

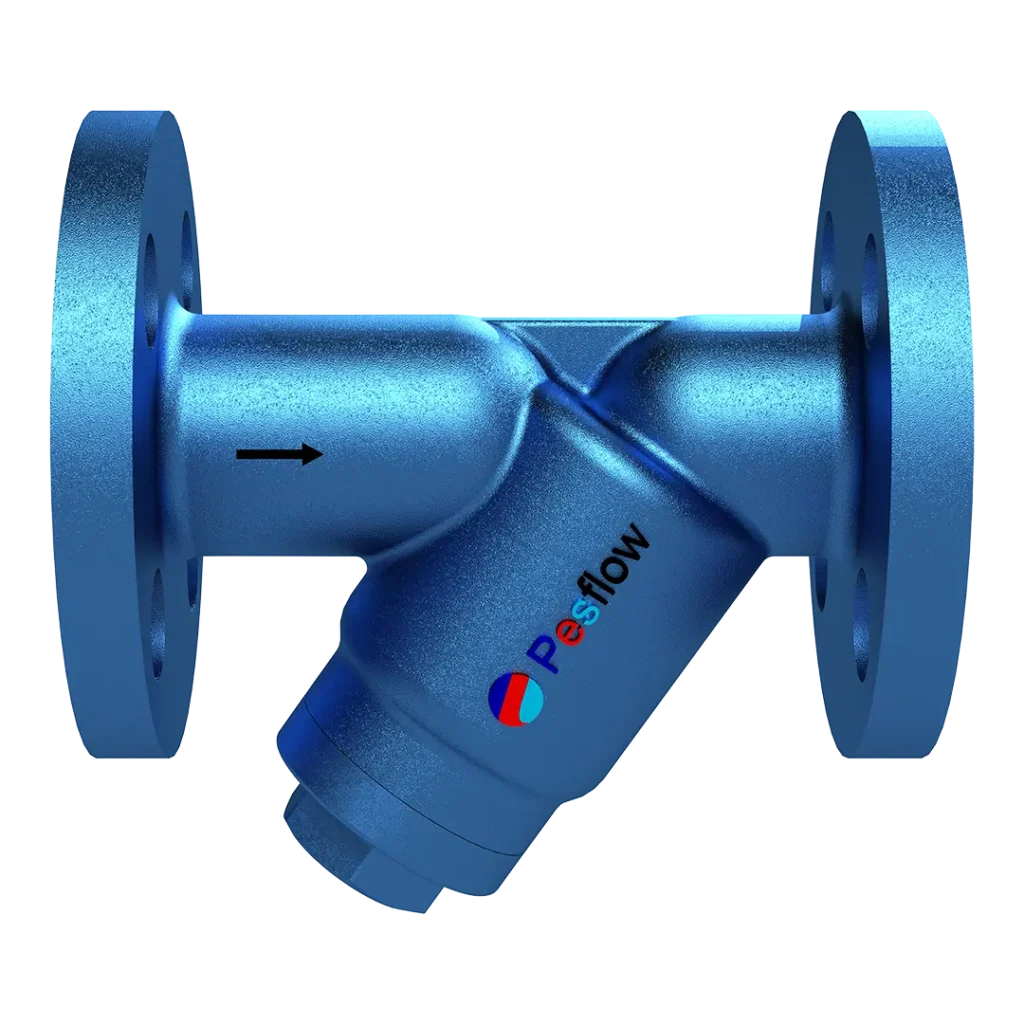

1. The Y-Strainer: Compact and Cost-Effective

As its name suggests, the Y-Strainer is shaped like a “Y”. The filtering element is housed in the lower, angled leg of the body, allowing the fluid to pass through the main channel while debris is captured in the screen.

Pros

Compact Design: Its small size makes it ideal for applications with limited space.



Versatile Installation: Can be installed in both horizontal and vertical (flow-down) pipelines.



Cost-Effective: Generally the most affordable type of strainer.



High-Pressure Tolerance: Its design is inherently strong and well-suited for high-pressure steam, air, and gas services.

Cons

Lower Dirt-Holding Capacity: The screen is relatively small, meaning it clogs faster and requires more frequent cleaning.



Higher Pressure Drop: Compared to a basket strainer of the same size, Y-strainers can cause a greater pressure drop as the screen becomes clogged.

Ideal Applications:

Steam, gas, or air lines where the amount of solids is expected to be low.



Protection for individual pieces of equipment like pumps, traps, and control valves.



Applications where frequent shutdowns for cleaning are acceptable.

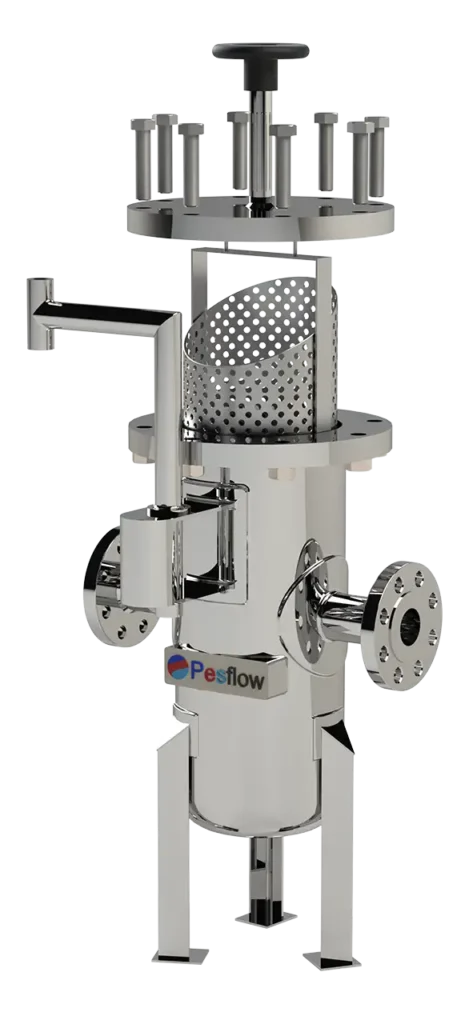

2. The Simplex Basket Strainer: The High-Capacity Workhorse

The Simplex Basket Strainer features a vertical chamber that houses a large, removable basket. Fluid flows into the chamber, and debris is captured inside the basket, which can be easily lifted out from the top for cleaning.

Pros

High Dirt-Holding Capacity: The large surface area of the basket can hold significantly more debris than a Y-strainer, meaning longer intervals between cleanings.



Lower Pressure Drop: The open design results in less flow restriction, making it ideal for liquids.



Easy Maintenance: The top-access cover makes removing and cleaning the basket straightforward.

Cons

Requires System Shutdown: The pipeline must be shut down and depressurised to clean or replace the basket.

Larger Footprint: It takes up more physical space than a Y-strainer and is typically installed in horizontal pipelines only.



Ideal Applications:

Liquid services like water intake lines, cooling towers, and chemical processing.



Systems with a moderate to high debris load.



Any application where the process can be temporarily stopped for maintenance without significant operational impact.

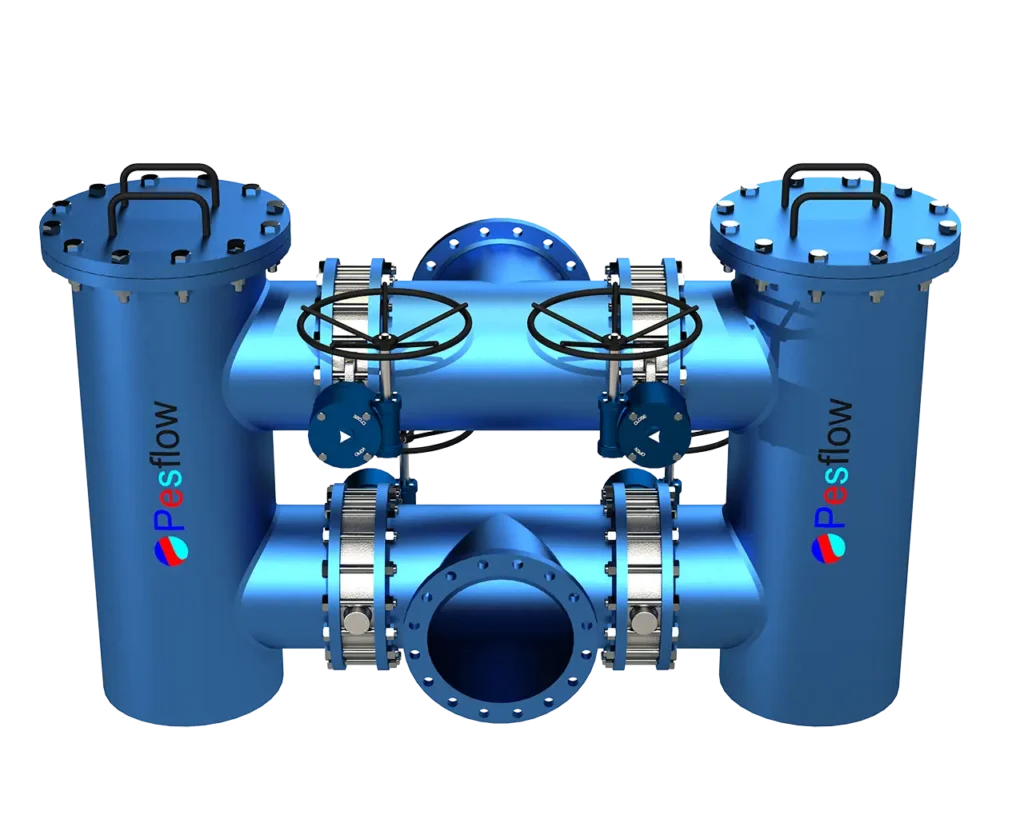

3. The Duplex Basket Strainer: For Uninterrupted Operation

The Duplex Strainer is the ultimate solution for mission-critical systems. It consists of two separate simplex basket strainer chambers linked by a diverter valve system. This brilliant design allows flow to be switched from one chamber to the other, enabling one basket to be cleaned while the other remains in service.

Pros

Continuous Operation: The system never has to be shut down for strainer cleaning, eliminating downtime.



High-Capacity Filtration: Offers the same high dirt-holding capacity as a simplex basket strainer.


Maximum System Uptime: Essential for processes that run 24/7.

Cons

Significantly Higher Cost: The complexity of two chambers and a diverter valve makes it the most expensive option upfront.



Large and Heavy: Requires substantial space and structural support.



More Complex: More moving parts and seals mean a more involved maintenance profile over the long term.

Ideal Applications:

Mission-critical processes that cannot be stopped, such as power plant cooling water, public utility water supplies, industrial lubrication systems, and continuous chemical manufacturing.



Firefighting water lines and other emergency systems.

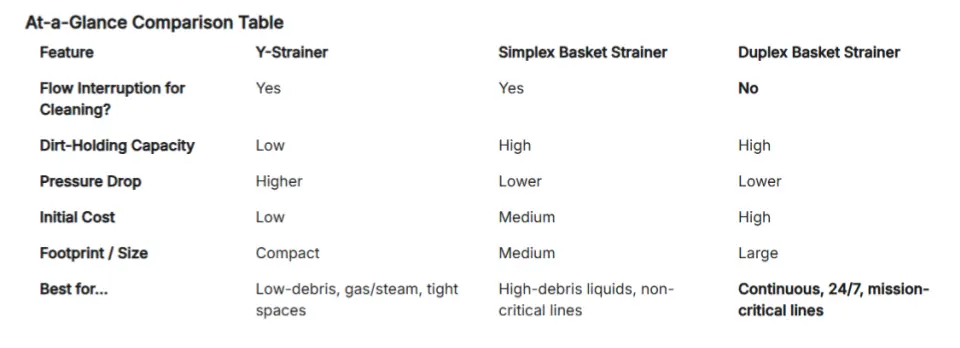

How to Make the Right Choice: Key Questions to Ask

Selecting the perfect strainer comes down to understanding your system’s specific needs. Ask yourself:

Can my process be shut down for cleaning?

No: You need a Duplex Basket Strainer.

Yes: A Y-Strainer or Simplex Basket Strainer is a viable option.

What is the expected debris load?

Low: A Y-Strainer is likely sufficient.

High: A Simplex or Duplex Basket Strainer is a better choice due to its higher capacity.

What is the fluid type?

Gas, Steam, or High Pressure: Y-Strainers excel here.

Liquid: Basket strainers are generally preferred for their lower pressure drop.

What are my space and budget constraints?

Limited Space & Budget: A Y-Strainer is the most economical and compact choice.

Ample Space & Moderate Budget: A Simplex Basket Strainer offers great performance for the cost.

Budget Accommodates Uptime: The upfront cost of a Duplex Strainer is an investment in uninterrupted operation.

Partner with the Experts at Perfect Engineering Services

Choosing the right strainer is a critical decision that protects your entire system. By understanding the pros, cons, and ideal applications of each type, you can ensure optimal performance and reliability.



If you are still unsure which strainer is right for you, or if you need a high-quality, reliable solution for your industrial process, our team is here to help.Perfect Engineering Services is a leading Basket Strainers Manufacturer in UAE, offering durable products engineered for performance and longevity.



Contact Perfect Engineering Services for expert advice and a complete range of industrial strainers designed to protect your most valuable assets.
