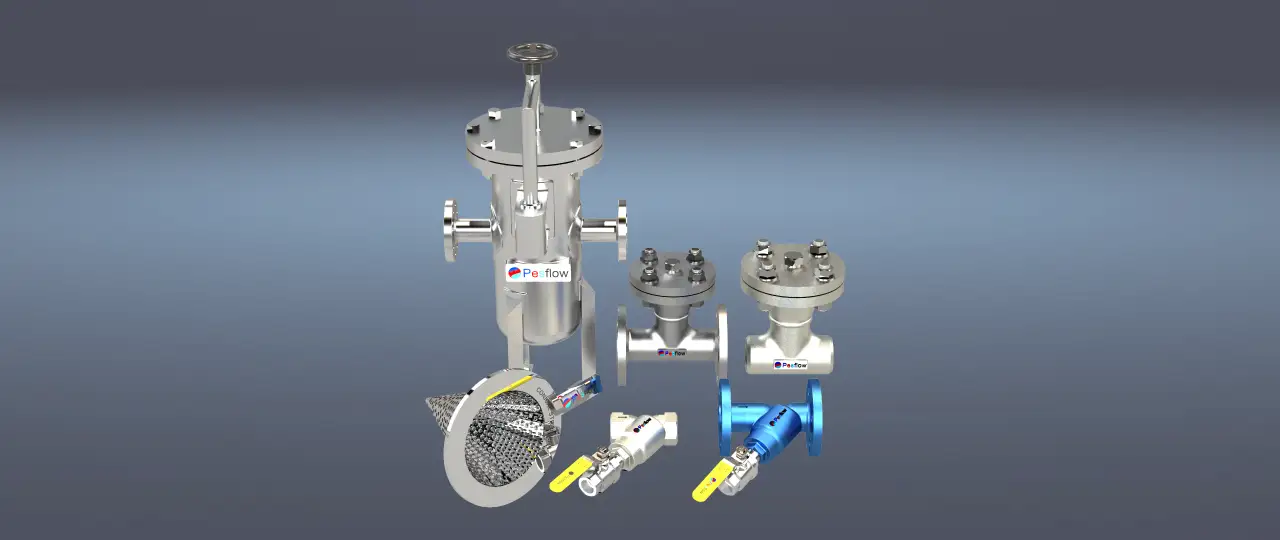

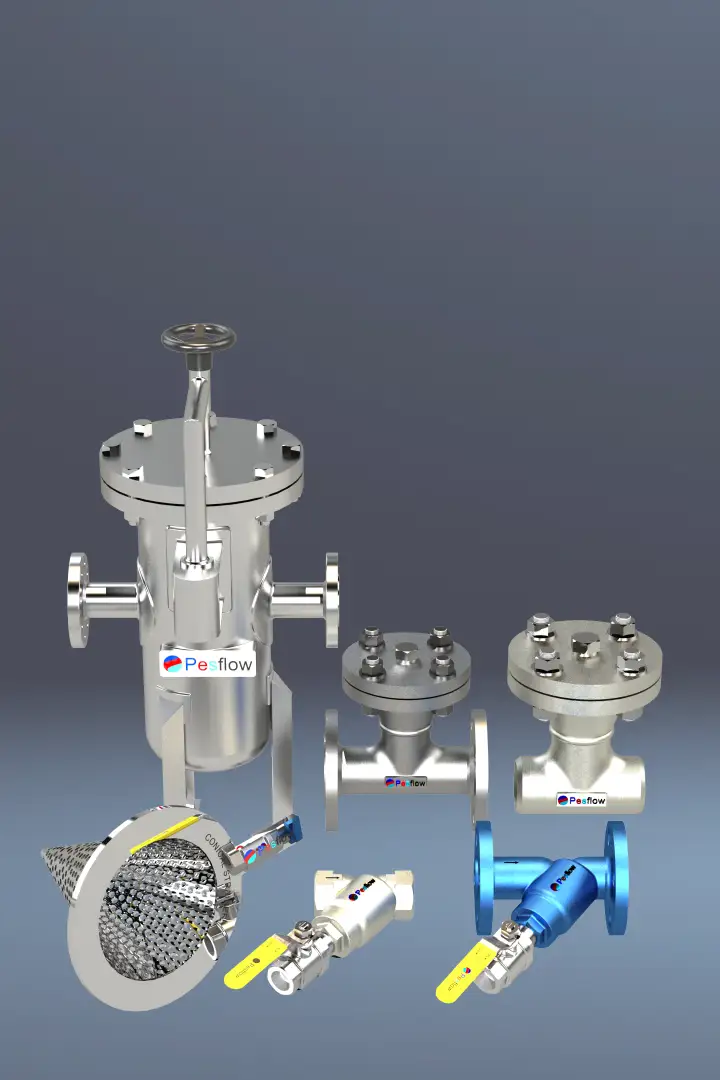

The Ultimate Guide How to Select the Right Industrial Strainer for Your System
In any industrial fluid handling system, the smallest components often play the most critical roles. Industrial strainers are the unsung heroes, working tirelessly to protect your valuable downstream equipment like pumps, meters, valves, and heat exchangers from damage caused by debris.That’s why leading Y Strainer Manufacturers in Dubai focus on delivering high-performance solutions for such demanding applications.
Choosing the wrong strainer can lead to clogged systems, inefficient operations, costly downtime, and even catastrophic equipment failure. Choosing the right one ensures smooth, reliable, and efficient performance for years to come.
But with so many variables to consider, how do you make the right choice?
At Perfect Engineering Services, a trusted name among Strainer Suppliers in UAE, we help our clients navigate this process every day. This step-by-step guide will walk you through the key factors to consider when selecting the perfect industrial strainer for your application.
Step 1: Understand Your Process Fluid & Operating Conditions
Before you even think about strainer types or sizes, you must first understand what’s flowing through your pipes. Ask yourself:
What is the fluid? Is it water, oil, a chemical, gas, or steam? What is its viscosity?
What are the operating temperature and pressure?
Is the fluid corrosive?
Step 2: Determine Your Required Flow Rate
The flow rate, typically measured in Gallons Per Minute (GPM) or Litres Per Minute (LPM), is the volume of fluid passing through the system over a given time.
Why it Matters: The flow rate directly influences the required pipe size and, consequently, the strainer’s connection size. An undersized strainer for a high-flow application will act as a bottleneck, causing a significant pressure drop and starving your system. An oversized strainer is an unnecessary expense and takes up valuable space.
Pro-Tip: Always select a strainer with a connection size equal to or larger than the pipeline it is being installed in. Never reduce the pipe size to fit a smaller strainer.
Step 3: Define Your Filtration Needs (Mesh vs. Micron)
This is where you decide how fine the filtration needs to be. The goal is to remove harmful particles without unnecessarily restricting flow. This is specified using either a mesh or micron rating.
Mesh: Refers to the number of openings in a screen per linear inch. A higher mesh number means more openings per inch, and therefore smaller particles will be captured.
Example: A 40 mesh screen has 40 openings per inch. A 100 mesh screen has 100 openings per inch and will capture smaller particles than a 40 mesh screen.
Micron: This is the actual unit of measurement for the size of the particle being removed. One micron (μm) is one-thousandth of a millimeter.
Example: A 200-micron screen will stop particles that are 200 microns in diameter or larger.
Which should you use?
The key is to know what you are protecting. Check the equipment specifications for your pumps or meters. They will often specify the maximum particle size they can handle.
|
Mesh Size
|
Micron Ratings (Approx.)
|
Common Application
|
|---|---|---|
|
20
|
840 µm
|
Coarse filtration, large debris (twigs, rags)
|
|
40
|
400 µm
|
General-purpose, sand, gravel
|
|
100
|
149 µm
|
Fine filtration, protecting sensitive instruments
|
|
200
|
79 µm
|
Very fine filtration, small particulates
|
Step 4: Calculate Acceptable Pressure Drop
Every component in a pipeline creates some resistance to flow, resulting in a loss of pressure. This is known as pressure drop.
Clean Pressure Drop: This is the pressure drop across a brand-new or freshly cleaned strainer. A good rule of thumb is to aim for a clean pressure drop of 2 PSI or less.
Clogged Pressure Drop: As the strainer screen collects debris, the pressure drop will increase. Your system must be able to function with this increased drop until the strainer is cleaned. A pressure gauge installed before and after the strainer is the best way to monitor this.
An excessively high pressure drop can lead to reduced flow, pump cavitation, and overall system inefficiency.
Step 5: Choose the Right Strainer Type
Based on your application and maintenance requirements, you will typically choose between two main types of strainers:
Y-Strainers
Best for: Applications with a low concentration of solids.
Features: Compact, can be installed in horizontal or vertical (downward flow) pipelines. Ideal for high-pressure applications, steam, and gasses.
Considerations: Hold less debris than basket strainers and can have a higher pressure drop.
Basket Strainers
Best for: Applications with a high concentration of solids or where frequent clean-out is necessary.
Features: Large debris holding capacity and a lower pressure drop. The screen is easily accessible from the top for cleaning.
Sub-Types:
Simplex Basket Strainer: A single basket chamber. The line must be shut down for cleaning.
Duplex Basket Strainer: Two basket chambers with a diverting valve. When one basket is full, flow can be diverted to the other, allowing for cleaning without interrupting the process. Ideal for continuous-run operations.
Step 6: Select the Right Materials of Construction
Finally, based on your fluid properties (Step 1), choose the materials for the strainer body and the screen.
Body Material:
Cast Iron: General-purpose water and oil service. Most economical.
Carbon Steel: Higher temperatures and pressures, durable for non-corrosive fluids.
Stainless Steel (304, 316): Excellent corrosion resistance, ideal for chemical, pharmaceutical, and food-grade applications.
Bronze: Primarily used for brackish water, seawater, and marine applications.
Screen Material:
Stainless Steel is the most common choice due to its strength and corrosion resistance, even if the strainer body is made of another material. 316 Stainless Steel offers superior corrosion resistance compared to 304.
Balancing Cost and Performance
It can be tempting to choose the cheapest option, but this is often a false economy. A low-cost carbon steel strainer might save you money upfront, but if used in a corrosive environment, it will fail prematurely, leading to far greater costs in downtime and replacement.
Initial Cost vs. Total Cost of Ownership: Consider the long-term operational costs. A Duplex strainer has a higher initial cost, but it can save thousands in lost production by eliminating the need for process shutdowns during cleaning.
Investment in Protection: The cost of a high-quality strainer is a small fraction of the cost of the pump, meter, or entire system it is protecting.
The Perfect Choice is Just a Call Away
Selecting the right industrial strainer is a critical engineering decision that balances flow dynamics, material science, and operational needs.Whether you’re sourcing from a Basket Strainers Manufacturer in UAE or selecting a Y Type Strainer Supplier in UAE, making the right choice is vital. By following these steps, you can ensure you’re making an informed choice that protects your system and your bottom line.
The team at Perfect Engineering Services, recognized as one of the Best Strainer Exporter in UAE,has decades of combined experience in fluid handling systems. We can analyze your specific requirements and recommend the perfect strainer that delivers performance, reliability, and value.
Contact us today to discuss your project and ensure your system is protected for the long run.
