Strainers: Navigating Their Crucial Role and Design

Contaminants such as scale, rust, and various particulates can compromise the integrity of pipelines when they mingle with mediums like water, oil, gas, air, and steam. These impurities may accelerate wear on valve seats, diminish the lifespan of valves, and even lead to the malfunction of equipment. Therefore, the strategic placement of appropriately selected strainers becomes essential to shield critical downstream equipment – from pumps and flow meters to steam traps and control valves. In this article, PESFLOW offers a detailed exploration of the strainer, shedding light on its significance and the variety of applications it finds across different systems. PESFLOW showcases a range of strainers, each designed to trap common pipeline contaminants and safeguard both machinery and operational processes. Here, we provide insights into selecting and sizing these strainers for specific needs.

The Role of Strainers

A strainer, an integral component in plumbing systems, acts as a filtration device to segregate and capture solid contaminants from flowing liquids. Much like a sieve, its primary objective is to prevent undesirable elements, such as rust, scale, or even welding residues, from integrating into the liquid circulating within pipelines. This proactive approach ensures that the equipment and broader systems stay protected from potential damage, thereby cutting down on maintenance and reducing unexpected operational halts.


In today’s competitive marketplace, the emphasis on limiting system disruptions and maintenance is paramount. Especially in systems involving steam and condensate, the intrusion of contaminants like scale, rust, and welding debris can jeopardize the efficiency and longevity of the setup. Strainers act as the first line of defense, meticulously filtering and preventing these solids from permeating the flow. Their strategic placement—preferably before each steam trap, flow meter, and control valve—not only safeguards the equipment but also drastically reduces the need for frequent interventions and downtime.

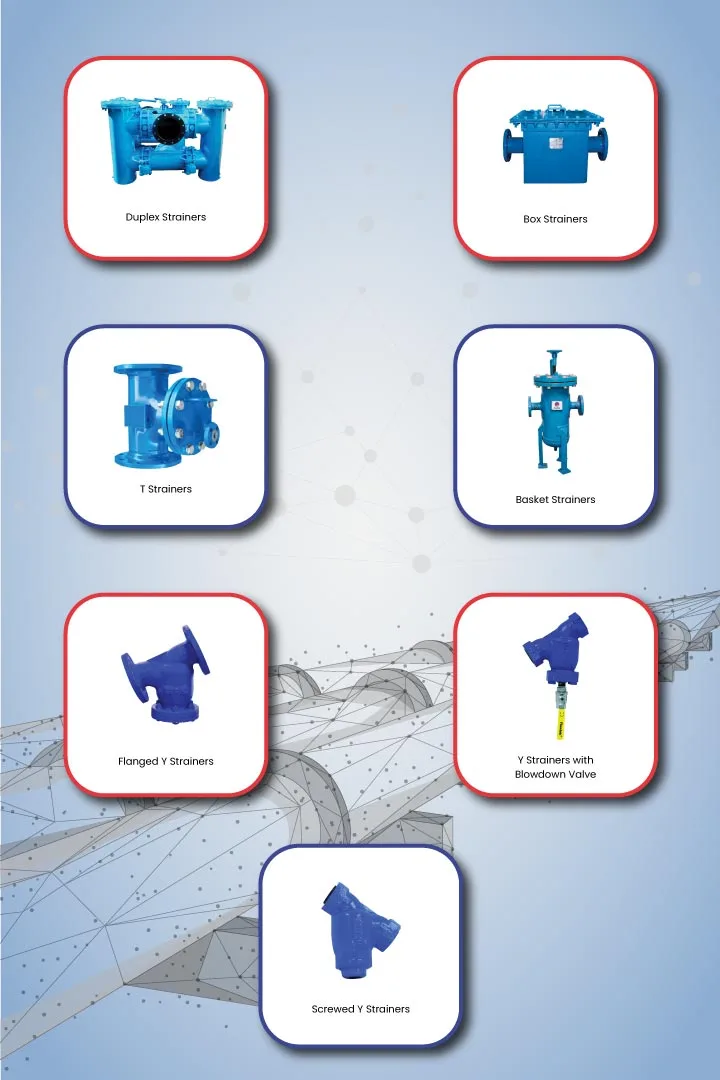

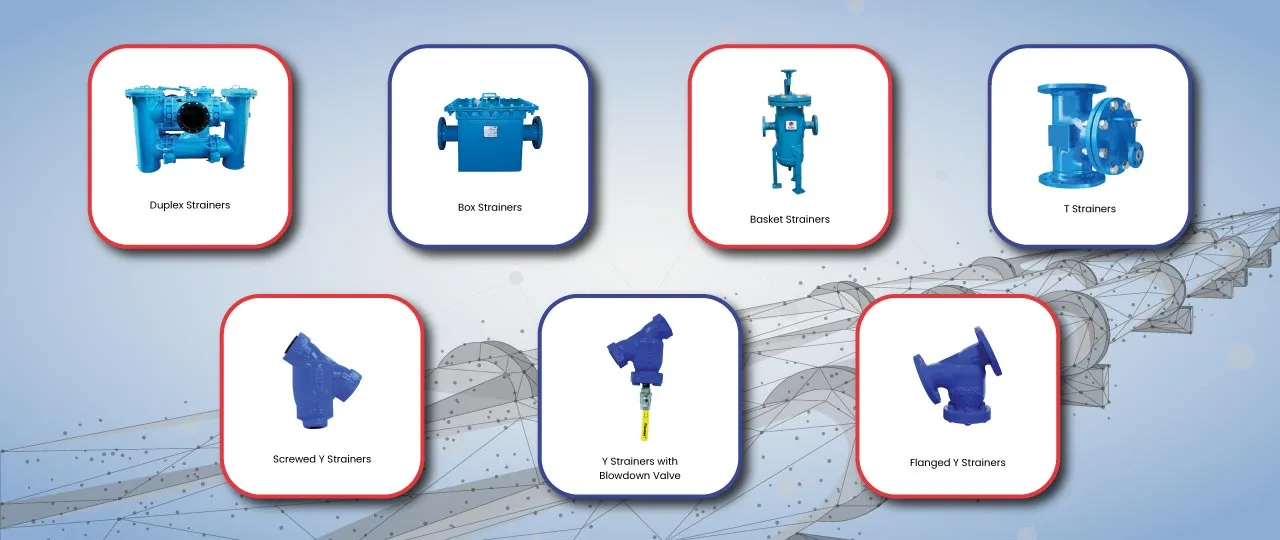

Let's delve into the vast range of Strainers based on their structural design:

Understanding the Y-Type Strainer

Named for its distinctive “Y” shape, the Y-Type Strainer is predominantly used in lines carrying pressurized liquids or gases. It’s also suitable for systems operating under suction or vacuum conditions. Designed for setups where only minimal solid particles are anticipated, and regular cleaning isn’t necessary, these strainers are especially practical. If the solids can be easily washed off the screen and the fluid can be safely released into the atmosphere, installing a blow-down valve on the drain port facilitates easy cleaning. This design feature allows for the screen to be cleaned without needing to interrupt the process flow or remove the screen.


One of the primary benefits of the Y-Type Strainer is its flexibility in installation. It can be set up either horizontally or vertically. However, in both orientations, it’s essential for the screen element to be positioned downward. This ensures that the trapped contaminants efficiently accumulate within it.


In horizontal setups for steam or gas piping, it’s vital to position the Y-type strainer such that its pocket aligns horizontally. This prevents water accumulation in the pocket, which could lead to erosion issues and disrupt heat transfer mechanisms.


Conversely, for liquid systems, the pocket of the strainer should be oriented vertically downward. This arrangement guarantees that any filtered debris doesn’t revert to the upstream pipeline, especially during periods of reduced flow.


While the preferred placement for strainers is in horizontal lines, there are instances where this isn’t feasible. In such cases, they can be fitted in vertical pipelines, provided the flow direction is downward. This orientation ensures that any debris is naturally channeled into the strainer’s pocket.

Flanged Y-Strainers

A flanged Y-strainer is a specific type of filtration device used predominantly in industrial applications to remove particles and debris from flowing fluids. Its main design resembles the letter “Y,” and it is equipped with flanges to connect it securely to other piping components. Here’s a comprehensive overview of its characteristics, uniqueness, and applications:


Characteristics and Uniqueness


Design & Shape: The hallmark of a Y-strainer is its distinctive “Y” shape. This design aids in diverting the debris into the angled portion of the strainer, capturing it before the fluid continues its path.


Flanged Connections: The flanged design ensures a secure connection and facilitates easy installation and removal in pipeline systems, especially in applications that handle high pressures.


Orientation: Unlike some strainers, Y-strainers can be mounted in both horizontal and vertical lines. In a horizontal setup, the “Y” shape ensures that the debris settles at the bottom, allowing for easy cleaning.


Ease of Cleaning: Many Y-strainers come with a blow-off connection at the bottom, making it easy to clean without entirely removing the strainer from the line.


Filter Element: Y-strainers contain a mesh or perforated screen to trap particles. Depending on the requirement, the mesh size can vary to filter out different particle sizes.




Protective Role: Y-strainers play a crucial role in safeguarding sensitive equipment, such as valves, steam traps, regulators, and other instruments, from potential damage by debris.


Industrial Fluid Processes: Industries like petrochemicals, chemicals, and power generation utilize Y-strainers to ensure debris-free fluid flow in their processes.


Water Systems: These strainers are often implemented in water distribution systems, both in treatment plants and in industrial cooling water systems.


Oil & Gas Pipelines: In the oil and gas sector, Y-strainers ensure that the downstream equipment is protected from contaminants.


HVAC Systems: Y-strainers can be found in heating, ventilation, and air-conditioning systems, especially in cooling towers and chilled water systems.


Steam Systems: In steam applications, they protect equipment from damage by trapping scale and rust.


To summarize, Flanged Y-strainers are vital components in many industrial processes, ensuring fluid purity and the smooth operation of downstream equipment. The flanged design offers robust connections, suitable for high-pressure applications, making them a favored choice in diverse industries.

Screwed Y-Strainers

A screwed Y-strainer is a type of filtration device utilized in various industrial processes to sift out and remove unwanted particles and debris from fluids. The primary identifier of this Y-strainer is its threaded or screwed end connections. Here’s a detailed look at its characteristics, uniqueness, and applications:


Characteristics and Uniqueness


Design & Shape: The Y-strainer, as the name suggests, boasts a distinctive “Y” shape. This design facilitates the diversion of unwanted particles into the slanting part of the strainer, trapping the debris effectively.


Threaded Connections: Unlike flanged or welded strainers, a screwed Y-strainer has threaded end connections. This makes them suitable for smaller pipelines and applications where a welded or bolted connection isn’t necessary.


Orientation: The Y-strainer can be mounted both horizontally and vertically, but its design ensures, especially in horizontal configurations, that debris collects at the bottom, simplifying the cleaning process.


Filter Element: The core of the Y-strainer is the mesh or perforated screen that traps particles. Depending on the specific needs of the application, the mesh can vary in size to filter out different sizes of debris.


Compactness: Due to the screwed connection, these strainers tend to be more compact, making them suitable for applications with space constraints.




Protecting Equipment: Y-strainers are essential in safeguarding sensitive machinery and equipment like pumps, valves, and other instruments from potential particle-induced damage.


Industrial Process Lines: They’re common in chemical, petrochemical, and various other industries to ensure a particle-free fluid flow, enhancing the quality and safety of the process.


Water Supply Systems: Y-strainers are found in water supply lines, ensuring debris-free water distribution.


Oil & Gas Systems: They’re beneficial in oil and gas setups, ensuring that downstream equipment runs efficiently by filtering out contaminants.


HVAC Systems: The strainers can be found in some heating, ventilation, and air-conditioning systems, particularly in systems requiring a debris-free flow.


Steam Applications: They play a crucial role in steam systems by capturing scale, rust, and other particles, ensuring smooth operations and equipment longevity.


In essence, screwed Y-strainers offer a compact, cost-effective solution for diverse industries, ensuring fluid purity and the seamless operation of downstream components. Their screwed end connections make them ideal for systems where quick assembly and disassembly are advantageous.

Y-strainer with blowdown valves

A Y-strainer with blowdown valves is a specific adaptation of the commonly used Y-strainer in various industrial processes. Its primary function is to filter out debris from flowing fluids, and the inclusion of the blowdown valve adds a unique dimension to its design and function.


Characteristics and Uniqueness


Design & Shape: The Y-strainer retains its characteristic “Y” shape, which facilitates efficient debris capture in the slanting portion of the strainer.


Blowdown Valve: The standout feature is the blowdown valve, which is typically located at the bottom of the Y-strainer. This valve allows for quick and convenient evacuation of accumulated debris and particulates without the need to disassemble the entire strainer or shut down the process flow.


Continuous Operation: The integration of the blowdown valve ensures that the strainer can continue to operate even during the cleaning process, thus minimizing disruptions to the primary process.


Filter Element: Inside the Y-strainer is a mesh or screen that captures particles. This can be periodically cleaned, either manually or by using the blowdown valve.




Protective Mechanism: Just like other Y-strainers, this version acts as a defensive shield for sensitive equipment such as pumps, valves, and meters, preventing potential damage from debris.


Industrial Process Systems: Used across various industries, from petrochemicals to food processing, these strainers ensure a smooth, debris-free fluid flow, crucial for product quality and equipment longevity.


Water Treatment Plants: In such setups, the Y-strainer with blowdown valves ensures continuous operation, as the debris can be flushed out without interrupting the main process.


Cooling Systems: They’re used in cooling towers and other related systems to prevent the clogging of nozzles and other components.


Boiler Feed & Condensate Systems: Here, they help in removing impurities to ensure the efficient operation of the boiler and prevent potential damage.


In summary, a Y-strainer with blowdown valves merges the efficiency of the Y-strainer with the convenience of continuous operation. It’s a practical solution in industries where interruptions for maintenance can lead to significant operational or economic challenges.

Basket Type Strainer Explained

The Basket strainer, is characterized by its vertically positioned chamber, generally more spacious than its Y-Type counterpart. Due to its larger free straining area, a basket strainer typically experiences a reduced pressure drop compared to a Y-type, making it the more favored choice for liquid systems. Furthermore, its enhanced capacity to retain impurities also makes the basket strainer a popular option for broader diameter steam pipelines.


Unpacking the Basket-Type Strainer


Basket-type strainers are specifically designed for horizontal pipeline installations. For the more sizable and weighty versions of these strainers, it’s essential to provide support at the strainer’s base.

Maintaining a basket strainer is relatively straightforward. By simply removing the cover, technicians can quickly access the filter component for replacement, especially if it’s clogged with debris. Additionally, when these strainers are employed in steam systems, they might produce a considerable amount of condensate. As a result, strainers crafted for steam applications typically come with a drain plug. This plug can be equipped with a steam trap, ensuring efficient condensate removal.

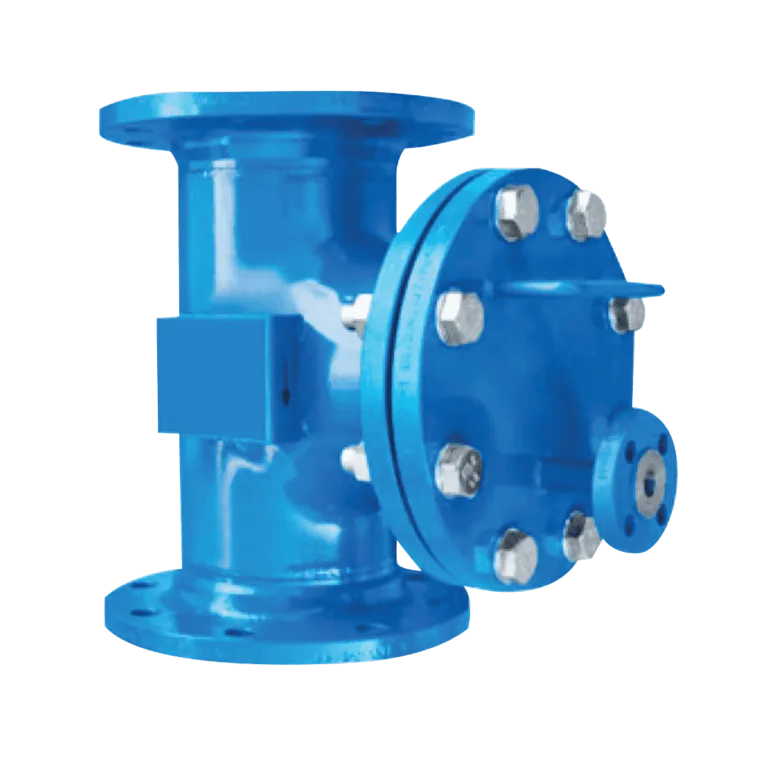

A T-strainer is a type of filtration device used in various industrial processes to remove particulates from fluids. As the name suggests, its body shape resembles the letter “T.” Here’s a deeper dive into its characteristics, uniqueness, and applications:


Characteristics and Uniqueness


Design & Shape: The primary uniqueness of a T-strainer lies in its design. The strainer has a “T” shaped body which facilitates the flow of liquid. This shape helps in directing the debris and particulates towards the filter, and clean fluid is allowed to pass through.


Orientation: Unlike some strainers, a T-strainer can be installed both in vertical or horizontal orientations depending on the application.


Cleaning: T-strainers usually have a straightforward mechanism to remove the collected debris. They often come with a plug that can be removed for quick cleaning without the need to disassemble the entire unit.


Compactness: Given their design, T-strainers can be quite compact, making them suitable for places where space might be a constraint.




Protection of Equipment: T-strainers are commonly used to protect sensitive equipment like meters, pumps, and compressors from potential damage by debris.


Industrial Processes: They’re used in various industries like petrochemical, chemical, manufacturing, and power generation to ensure clean fluids in the processes.


Water Treatment: T-strainers can be used in water treatment plants to filter out larger debris and particles before water is further treated.


Oil & Gas: In the oil and gas industry, T-strainers are used to protect downstream equipment from particulates that might be present in the pipelines.


Food & Beverage: In food processing, T-strainers can help in ensuring that the liquids are free from particulates.


Pharmaceuticals: Ensuring pure, particulate-free liquids is crucial in pharmaceutical manufacturing. T-strainers can be used for this purpose.


In essence, T-strainers are versatile, compact filtration devices essential for many industrial processes, ensuring the smooth operation of equipment and the purity of fluids.

Duplex Strainers

Duplex strainers, as their name suggests, are dual-basket strainers that permit continuous operation without shutdown during basket cleaning. They are ingeniously designed to switch between baskets, ensuring that while one is being cleaned or serviced, the other takes on the job of filtering. This means there’s always an uninterrupted flow—a critical aspect for numerous industrial processes.


The Necessity of Uninterrupted Flow


Several systems, such as cooling water systems, lubrication setups, and chemical processes, cannot afford interruptions. Halting operations, even briefly, can lead to downtime, reduced efficiency, potential system damage, and, ultimately, decreased profitability. Duplex strainers effectively address this concern by offering a seamless transition between their dual baskets, maintaining continuous flow and operational integrity.




The versatility of duplex strainers is evident in their wide array of applications:


Cooling Water Systems: These systems are vital for maintaining equipment temperature, and any interruption can lead to overheating and potential damage.


Pumps & Compressors: Duplex strainers ensure that these devices receive clean, debris-free fluid, crucial for their longevity and optimal performance.


Fire Lines: In emergency systems like fire lines, any hindrance can have dire consequences. Here, continuous flow is not just a matter of efficiency but of safety.


Fuel and Lubrication Systems: Contaminant-free fuel and lubricants are essential for the efficient operation of engines and machinery. Duplex strainers ensure this purity.


Salt and Freshwater Systems: Whether it’s for marine applications or freshwater treatment plants, these strainers play a pivotal role in ensuring water free from larger contaminants.


Chemical Process Systems: Chemical processes often demand a consistent flow rate, and even minor interruptions can throw off the desired chemical reactions.


In the complex arena of fluid management, the importance of reliable, high-quality equipment can’t be overstated. Duplex strainers embody this reliability and quality, ensuring that operations run smoothly, efficiently, and without interruption. They are not just tools but vital components that uphold the integrity of various industrial processes. Our commitment, as leading manufacturers, is to continue delivering this excellence, marrying innovation with functionality, and setting new benchmarks in the industry.

Box Strainers: An Unsung Hero in the Aviation Industry

In the intricate world of aviation, every detail matters. From the vast expanse of the wings to the minuscule components hidden within the machinery, each part plays a crucial role. Among these often-overlooked components are the humble box strainers, primarily used for the filtration of air and fuel. But why are they so critical, and how do they contribute to the broader aviation framework?


Understanding Box Strainers


Box strainers, sometimes referred to as basket strainers, are designed to filter or “strain” undesirable larger particles from fluids. Essentially, they are containment units that have a mesh-like structure, ensuring that contaminants do not pass through. While their application might be broad in many industries, their role in aviation, especially concerning air and fuel filtration, is particularly critical.


The Crucial Role of Filtration in Aviation


The importance of filtration in aviation cannot be stressed enough. Consider the jet fuel; it’s the lifeblood of any aircraft. Before this fuel reaches the engine, it must be free from impurities. Any contamination could compromise combustion efficiency or, worse, damage the engine components. This is where box strainers come into play.


Similarly, in the context of air, aircraft systems, particularly the engines, require a steady stream of clean, uncontaminated air. This air, when mixed with the fuel, is essential for combustion. Contaminated air can lead to incomplete combustion, reduced efficiency, and potential wear and tear on the engine.


While they might not be the most talked-about components in aviation, box strainers play a pivotal role in ensuring the safety, efficiency, and longevity of aircraft systems. Their role in filtering air and fuel, two fundamental elements for aircraft operation, places them at the heart of aviation mechanics. As the aviation industry continues to evolve with more advanced aircraft and systems, the foundational role of components like box strainers remains ever crucial. Their silent, continuous operation behind the scenes truly marks them as unsung heroes in the realm of flight.

Materials Used in Strainer

Strainers are constructed from various materials, with the most prevalent being cast iron, bronze, carbon steel, stainless steel, and plastic.


Of these, cast iron is a widely favored choice for strainer bodies due to its cost-effectiveness. It’s ideally suited for systems where water pressure and temperature remain moderate, and where the system isn’t exposed to significant thermal or mechanical shocks. Predominantly, cast iron finds its application in larger potable water pipelines, numerous non-potable water systems, and a broad range of other industrial and process-oriented uses.


A Closer Look at Strainer Materials


Carbon Steel: Perfect for scenarios demanding high temperature and pressure resistance, carbon steel stands up to both thermal and mechanical shocks. This material becomes especially significant in areas where fire risks are prevalent.


Stainless Steel: Due to its inherent resistance to corrosion and contamination, along with its ease of cleaning, stainless steel often becomes the top pick for both the strainer body and its filtering components.


The choice of material for strainer is crucial, determined by the specific requirements and conditions of each application.

Strainer vs. Filters: Understanding the Distinctions

Filters are devices engineered to extract particles from either a liquid or gas. Their design typically incorporates a one-time-use medium that targets and eliminates particles of specific micron dimensions. While every strainer can be categorized as a filter, the converse isn’t true; not every filter can be deemed a strainer. Essentially, strainers represent just one category within the broader spectrum of filters.


Strainer employ a screen—be it a perforated plate or mesh—to sift out larger contaminants from a flow. A standout feature of strainers is their reusability. Conversely, a filter’s screen is typically single-use, requiring replacement once it becomes obstructed.


A distinguishing factor between the two often hinges on the size of the openings in their screening medium, often referred to as the mesh size for strainers. However, there’s no strict demarcation in mesh or hole size that distinctly classifies a device as a strainer versus a filter.


Another distinguishing factor lies in resistance. Typically, strainers offer minimal resistance to the flow of liquids. When compared to the pressure drop experienced across dense media filters or membrane filters, the drop across most strainers is considerably lower.


Furthermore, their primary purposes vary. Strainers primarily act as guards, shielding downstream equipment from potential harm caused by stray debris. On the other hand, the primary role of a filter is to segregate particles from the encompassing fluid.

There you have it – a comprehensive overview of the strainer valve and its various kinds.
